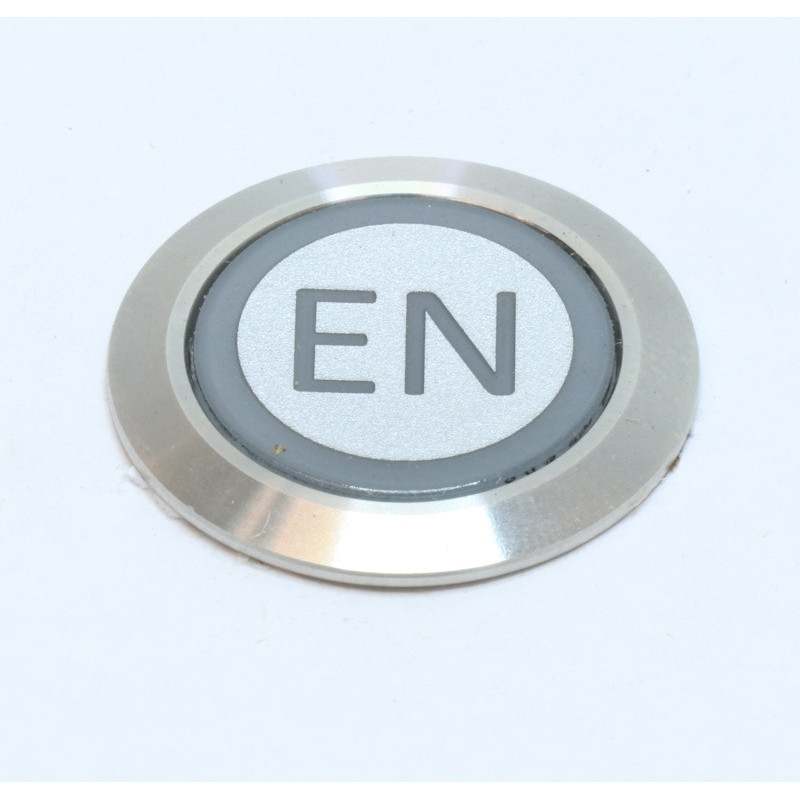

Pushbutton 22 mm stainless-steel Momentary

Pushbutton 22 mm stainless-steel Momentary EN

1.Switch rating: Ui:250V，Ith:5A

2.Mechanical life: ≥1,000,000 cycles

3.Electrical life: ≥50,000 cycles

4.Contact resistance: ≤50mΩ

5.Insulation resistance: ≥100MΩ(500VDC)

6.Dielectric strength：1,500V，RMS 50Hz，1min

7.Operation temperature: - 25 ℃~55℃ (+no freezing)

8.Operating pressure: about 4N(1NO1NC),about 7.5N(1NO1NC)

9.Operation travel: about 2.5mm

10.Torque：about 0.8Nm Max.applied to nut

11.Front panel protection degree：IP65(Momentary IP67 made to order)，IK10

12.Terminal type: Pin terminal (2.8x0.5mm)
