GeoBox G112

The absolute opposite of ordinary - Mini Edge Blending Processor.

The GeoBox G112 is a professional hardware-based curved screen edge blending processor designed for warping, scaling, cropping, and 360-degree rotation.

Immersive Engagement

Seamless panorama creation on flat and curved screens.

Geometric Precision

Sophisticated geometry alignment with up to 17x9 control points.

Flexible Display

Portrait edge blending support and aspect ratio correction.

Deploy Anywhere

Hardware-based reliability for 24/7 mission-critical applications.

Quick 4-corner & Keystone alignment
Linearity Grid Line Adjustment
Edge Masking up to 500 pixels

4K/30Hz HDMI 1.4 Input
4:4:4 Full Color Sampling
3D Motion Adaptive De-interlace

Independent RGB Gamma fine-tune
Programmable EDID settings
User-saveable profiles (up to 10)

Product Overview

G112 - Single Channel Package

High-end 10-bit processor featuring low angle smooth algorithm and 3:2/2:2 pull-down detection for professional video results.

G112 vs M801

Designed for users needing a compact, cost-effective hardware solution with W-type Corner Wall alignment and direct IR/Keypad control.

The GeoBox G112 Advantage

• Real-time performance with only 2 frames system latency (33ms at 60Hz).
• Sophisticated W-type 12 control point Corner Wall mapping for 90-degree corners.
• Support for 4K/30Hz input and high-quality resolution scaling (up and down).
• Independent RGB gamma correction for precise edge blending color fine-tune.
• Cascade up to 225 projectors for giant curved screen edge blending systems.
• Flexible image rotation (90/180/270°) and flip for portrait or rear projection.
• Standalone operation: No PC or software required for full setup and control.
• Green design: Low power consumption (only 4.8W) for 24/7 reliability.

Core Technology

Precision Engineering.

A hardware-based architecture that delivers unparalleled stability and processing power for professional AV installations.

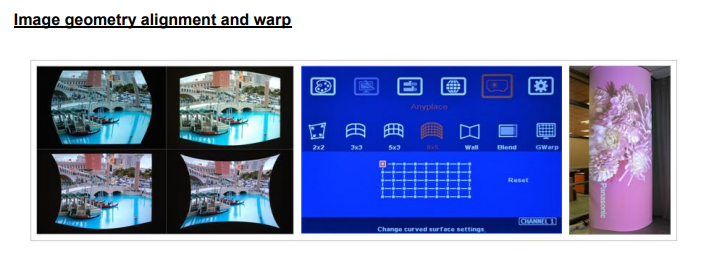

WARPING

Perform complex geometry alignment on any projection surface with pixel-perfect accuracy.

17x9 Grid control points via IR controller
Keystone and Pincushion correction
Linearity Grid Line Adjustment for curved screens
Maximum +/- 1200 pixels adjustment range

BLENDING

Seamlessly merge multiple projection fields into a single, cohesive high-resolution image.

Independent RGB Gamma adjustment in overlap
H/V overlap setting up to 1920/1200 pixels
Selectable internal grid patterns (8-120 pixels)
Color and white balance correction

MAPPING

Innovative W-type mapping for immersive corner-wall projection with one or more projectors.

5 control points on horizontal edges
3 control points on vertical edges
Map images at 90-degree corners at any location
Simplified setup for complex room geometries

ROTATION

Universal image orientation control to fit any physical screen configuration.

90/180/270 degrees hardware rotation
Front/Rear and Mirror flip functions
Display mobile/iPad content on portrait monitors
Flexible aspect ratio correction up to 1800 pixels

Reliability & Operational Efficiency

Hardware-Based Stability.

Unlike PC-based blending solutions, the GeoBox G112 is a dedicated hardware processor. It provides immunity to viruses, system crashes, and OS updates, making it the perfect choice for permanent installations that require maximum uptime and zero maintenance.

Control & Connectivity

Professional interfaces for seamless integration into any control environment.

IR & Front Panel
Full function OSD for intuitive geometry and system setup.

RS232 Support
Compatible with leading control systems (Crestron, AMX, Extron).

Programmable EDID
Customize EDID range (H=1024-3840, V=720-2400) for source optimization.

Full Technical Specifications

SPECIFICATION	GEOBOX G112
INPUT & OUTPUT
Input Ports	1x HDMI 1.4
Output Ports	1x HDMI 1.4
Max. Input Resolution	3840 x 2160 @30 fps (4:4:4)
Max. Output Resolution	WUXGA (1920x1200) @60Hz
PROCESSING ENGINE
Video Processor	10-bit High-End Engine
Geometry Alignment	Warping up to 17x9 points
Corner Wall Support	W-type (12 control points)
System Latency	33ms (@ 60Hz)
Edge Blending Overlap	Up to 1920 (H) / 1200 (V) pixels
PHYSICAL & POWER
Dimensions (Body)	169 x 116 x 31 mm
Weight	0.52 kg
Power Consumption	DC 12V / 0.4A (4.8W)
Compliance	CE / FCC / RoHS Certified
