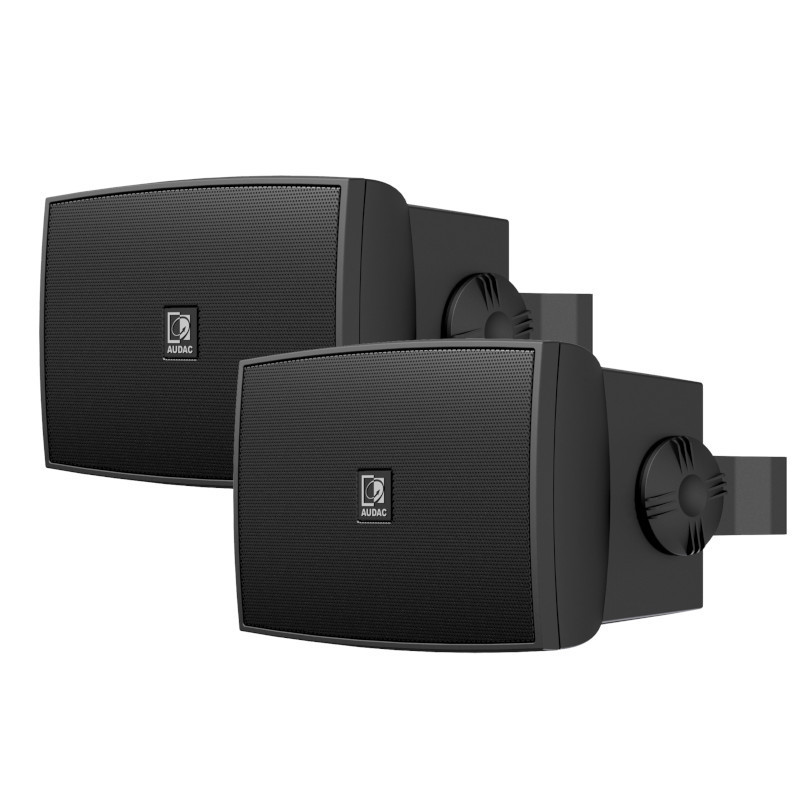

Audac WX502 universal indoor wall speakerset 5" Black
€185.00
Tax excluded
Audac WX502 universal indoor wall speakerset 5" Black
AUDAC WX502
Universal wall speaker 5 1/4" - Powerful 2-way performance speaker.
The WX502 is a powerful 2-way speaker suitable for a wide variety of applications, ensuring true-to-nature, high-fidelity reproduction of music and speech. It features an elegant design that blends into any indoor environment, from standard homes to designer interiors.
High-Fidelity Audio2-way speaker construction with 1" dome tweeter and 5 1/4" LF driver. Installer ConvenienceUpdated MK2 version features a terminal block for easy daisy-chaining. Flexible OrientationIncluded steel bracket supports both vertical and horizontal mounting. Overload ProtectionIntegrated advanced protection network protects the tweeter against overload.
|
 |
Models
WX502MK2/B - Black Version
The classic black finish (RAL9005), perfect for standard indoor applications and high-design interiors where a professional look is required.
WX502MK2/W - White Version
The elegant white finish (RAL9003), ideal for bright environments and modern architectural spaces.
The AUDAC WX502 Advantage
- • Crystal Clear Sound: High-performance 2-way system ensures natural reproduction of music and speech.
- • Universal Compatibility: Use in standard 8 Ohm systems or distributed 70V/100V PA networks.
- • Field Proven Reliability: Integrated protection network keeps the tweeter safe from power surges.
- • Installer Friendly: Terminal block connections and additional 4-pin terminals for easy daisy-chaining.
- • Aesthetic Design: Elegant rotatable logo and slim synthetic enclosure for a premium finish.
- • Wide Coverage: Large dispersion angle of 110° provides consistent audio throughout the room.
Indoor Excellence
Designed for high-quality interiors.
The WX series MK2 combines AUDAC's signature sound quality with innovative features that simplify installation and enhance durability in indoor environments.
VERSATILE
Multi-tapping line transformer with selectable power taps for 40W, 20W, and 10W.
RELIABLE
Built-in protection circuitry ensures long-term performance even at higher volumes.
EASY INSTALL
Terminal block connections make wiring and multi-speaker setups efficient and clean.
Efficiency in deployment and maintenance.
The WX502 reduces upfront installation costs through its clever bracket and terminal block design. With integrated protection networks, it mitigates the risk of driver failure, leading to lower maintenance expenses throughout its operational life.
Hardware Specifications
Accessories & Installation
A complete package for immediate surface-mount deployment.
Included Accessories
Inclusief stalen montagebeugel voor horizontale en verticale bevestiging.
Inclusief stalen montagebeugel voor horizontale en verticale bevestiging.
Connection Block
MK2 version includes a 4-pin terminal block for input and link-out connection.
MK2 version includes a 4-pin terminal block for input and link-out connection.
Rotatable Logo
Audac logo kan gedraaid worden afhankelijk van de oriëntatie van de speaker.
Audac logo kan gedraaid worden afhankelijk van de oriëntatie van de speaker.
Full Technical Specifications
| SPECIFICATION | AUDAC WX502 | |
|---|---|---|
| SYSTEM SPECIFICATIONS | ||
| Speaker Type / Drivers | 2-way / 1" HF + 5 1/4" LF | |
| RMS / Peak Power Handling | 50 W (AES) / 200 W | |
| Sensitivity (1W/1m) / Max SPL | 87 dB / 104 dB (@ 8 Ohm) | |
| Frequency Response (± 3 dB) | 70 Hz - 18 kHz | |
| Dispersion (H x V) | 110° x 110° | |
| TRANSFORMER TAPPINGS | ||
| 100V Line | 40 W / 20 W / 10 W | |
| 70V Line | 40 W / 20 W / 10 W / 5 W | |
| Bypass | 8 Ohm | |
| PRODUCT CHARACTERISTICS | ||
| Dimensions (W x H x D) | 212 x 147 x 136 mm (Enclosure) | |
| Weight | 2.54 kg (approx. 2.75 kg incl. bracket) | |
| Construction Material / Finish | ABS / Steel grill | |
| Operating Temperature | -25°C to +70°C | |
