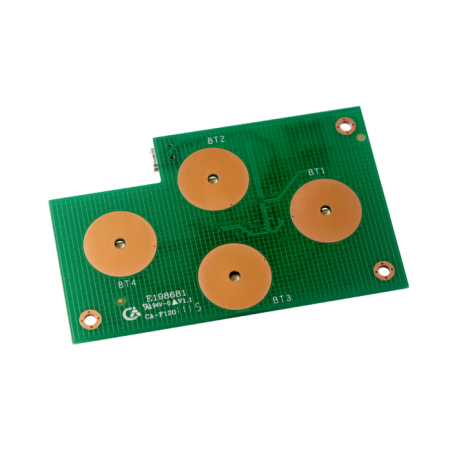

USB 4 Button Panel Red
€58.50
Tax excluded
Create reliable interactive experiences with ease by adding a BrightSign
Capacitive Touch USB Button Panel to your display. Select from 4-button
and 11-button models to trigger content......
BrightSign USB Button Panels
Capacitive Touch Interactivity - Create reliable experiences with ease.
Add high-quality interactivity to your displays with 4-button and 11-button capacitive touch panels. Engineered for reliability, these panels trigger content playback while providing clear user feedback through programmable LED lighting.
Programmable InteractionFully customizable triggers using BrightAuthor:connected. LED FeedbackBrightly colored LEDs with variable blink speeds. Seamless IntegrationThin, compact board design for easy display mounting. Universal CompatibilityWorks with any BrightSign player featuring a USB port.
|
 |
Product Series
BP200HI Series - 4-Button Configuration
Ideal for simple choice-based interactivity. Available with Red (BP200HI) or Blue (BP200HI-R) LEDs to match your brand's aesthetic.
BP900 Series - 11-Button Configuration
Designed for complex interactive journeys and deep content navigation. Choose between Red (BP900) or Blue (BP900HI) LED indicators.
The BrightSign Button Panel Advantage
- • Reliable Triggers: Capacitive technology eliminates mechanical wear and tear, ensuring longevity in high-traffic retail environments.
- • Custom Branding: Supports overlays using plastic, wood, acrylic, or glass, allowing the interface to blend perfectly with your display design.
- • Plug-and-Play Setup: Calibrates automatically upon bootup to account for overlay thickness and environment.
- • Interactive Feedback: Programmable LEDs provide immediate visual confirmation to the user, enhancing the overall experience.
- • Easy Programming: Use BrightAuthor or BrightAuthor:connected to define complex interactive logic without writing code.
Overlay Guidelines
Precision engineering for custom interfaces.
To ensure optimal capacitive sensitivity and trigger reliability, please follow these manufacturing and installation standards.
MATERIALS
A wide range of non-conductive materials are verified to work with BrightSign capacitive sensors.
- Plastic, Acrylic, Polycarbonate (PC), and Lexan
- Wood, ABS, and Tempered Glass
- Note: Avoid materials that retain static charges
THICKNESS & GAPS
Maintaining correct physical contact is critical for sensor accuracy.
- Overlay thickness must be 1/4" or thinner
- ZERO air gaps allowed between panel and overlay
- Permanent bonding (Silicone or 3M tape) recommended to prevent board flexure
BOOTUP & CALIBRATION
Self-calibrating hardware for consistent performance.
The device self-calibrates upon every bootup. Ensure panels and overlays are fully connected to the BrightSign player prior to applying power. Any changes to overlay placement after power-on will nullify the previous calibration.
Technical Specifications
| SPECIFICATION | BP200HI Series | BP900 Series |
|---|---|---|
| CORE FEATURES | ||
| Number of Buttons | 4 | 11 |
| LED Colors Available | Red / Blue | Red / Blue |
| Interface | USB mini Type B | |
| PHYSICAL DIMENSIONS | ||
| Width x Depth x Height | 101.6 x 63.5 x 11.1 mm | 139.7 x 101.6 x 11.1 mm |
| Weight | 46 g | 46 g |
| ENVIRONMENTAL | ||
| Operating Temp Range | 0°C to 50°C | |
| Mounting | Integrated board mounting holes | |
