Audac IMEO2/B

Name: Audac IMEO2/B
Brand: Audac
SKU: IMEO2/B
Price: 299 EUR
Availability: InStock

€299.00

Tax excluded

IMEO SERIES

Crystal-clear sound production.

A clever yet qualitative audio solution in meeting rooms, class rooms, hotel rooms and many more applications.

Volume discounts

Quantity	Unit discount	You Save
5	5%	€74.75
10	10%	€299.00

Quantity

AUDAC IMEO2

Professional 3-way soundbar - Exceptional acoustics for any space.

The IMEO2 Soundbar features a slim and elegant design, perfectly suited for classrooms, presentation rooms, or meeting rooms in combination with screens, smartboards or projectors.

Acoustic Excellence

3-way design with integrated subwoofer and WaveSelect DSP.

Smart Connectivity

HDMI (ARC with CEC), Optical, Coaxial, and Bluetooth 4.2.

Professional Controls

Hotel mode, wake-up source definition, and tactile side controls.

Eco Design

ENERGY STAR® certified with auto-standby function.

60 Watt RMS Class-D amplifier
Preset equalizer modes (Music, Video, Presentation)
Custom Bluetooth ID assignment (Hotel Mode)

Clever bracket system for top/bottom mounting
USB interface for playback and storage
Included IR remote control

VARIANTS

IMEO2/B - Black version

CERTIFICATION

Product Information

The acoustics originate from a 3-way speaker construction, composed of two 1.5” high frequency drivers, two 2” mid frequency drivers and a low frequency section with two 2.5” low frequency drivers. The Class-D amplifier with integrated WaveSelect DSP processing and transmission line configuration offers a crystal clear sound reproduction with stunning low-frequency response.

An additional function is implemented to define a specific wake-up source, allowing the IMEO2 to always turn-on with the same input source selected. Tactile buttons on the side permit locking both input and volume, which is very useful in education or hotel environments.

Usage:
Indoor

Applications:
Education, Hotels, Corporate, Residential

System Specifications

SPECIFICATION	DETAILS
ACOUSTICS & POWER
Outputs Power	2 x 15 W + 1 x 30 W (60W RMS Total)
Max Sound Pressure (W/1m)	90 dB
Frequency Response (± 3 dB)	40 Hz - 20 kHz
THD+N (@ 1 kHz)	1%
Drivers	HF: 2 x 1.5" / MF: 2 x 2" / LF: 2 x 2.5"
CONNECTIVITY & CONTROL
Bluetooth Specification	V4.2, Class 2 output power
Inputs (Connectors)	3.5 mm Jack (Unbalanced), Coaxial SPDIF, HDMI ARC, USB Playback (MP3, FLAC, WAV), Optical
Control	IR Remote control, Side panel switches
POWER CONSUMPTION
Consumption / Source	30 W / 100-240 V AC/50-60 Hz
Standby Consumption	0.5 W (Energy Star 3.0)

Product Features & Accessories

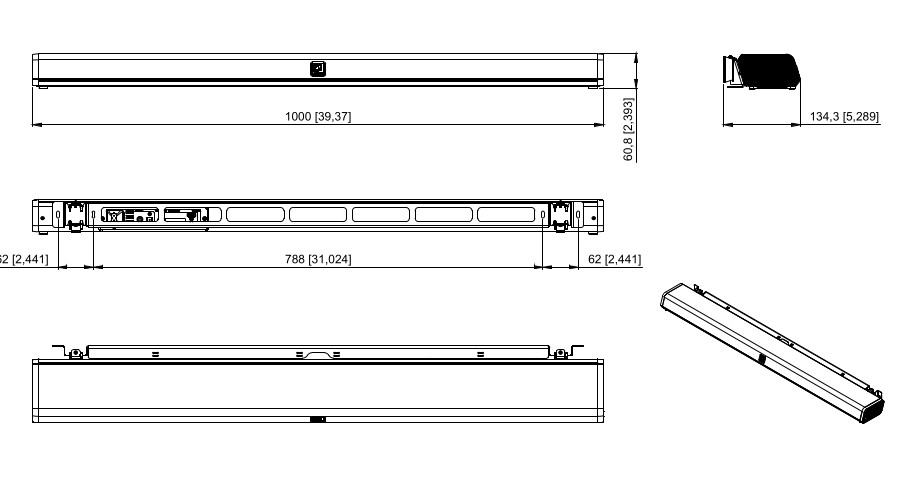

Dimensions	1000 x 60.8 x 111.3 mm (Excl. bracket) / 134.3 mm (Incl. bracket)
Weight	4.24 kg
Construction	ABS enclosure with Steel grill front
Included Accessories	Power cable, Wall mounting bracket, Remote control (IR), 3.5 mm jack audio cable (1m), 3.5 mm jack audio pigtail (0.15m), 90° HDMI angle adapter

Standards & Regulations

LVD CE: Compliant to EN 62368

EMC: Compliant to EN 55032, EN55024, EN 61000-3-2/3

CB: Compliant to IEC 62368

FCC: Part 15C

CTUVus: Compliant to IEC 62368+UL62368

ROHS / REACH: Compliant

RED: Compliant to EN301489-1/17, EN300328

Architects and Engineers' Specifications

The loudspeaker shall be a 3.1 active sound bar system with integrated subwoofer, composed of two 1.5" high frequency drivers, two 2" mid frequency drivers and two 2.5" low frequency drivers in a transmission line configuration offering crystal clear sound reproduction with stunning low-frequency response. The enclosure shall be slim and elegant, constructed using ABS materials with a finely perforated steel grill front finishing.

The high frequency section shall have a power handling of 2 x 15 Watt and the low frequency section shall have a power handling of 30 Watt, resulting in an overall rating of 60 Watt RMS. The frequency response (±3 dB) shall range from 40 Hz to 20 kHz. Various signal inputs shall be implemented, including a stereo line input using 3.5 mm jack connections, a digital audio input with both optical and coaxial implementation and a HDMI ARC input. An integrated Bluetooth receiver shall allow wireless connection.

The speaker system shall operate on an AC 100-240 V AC/50-60 Hz mains network. The enclosure shall be 60.8 mm high, 1000 mm wide and 134.3 mm deep (including bracket).
