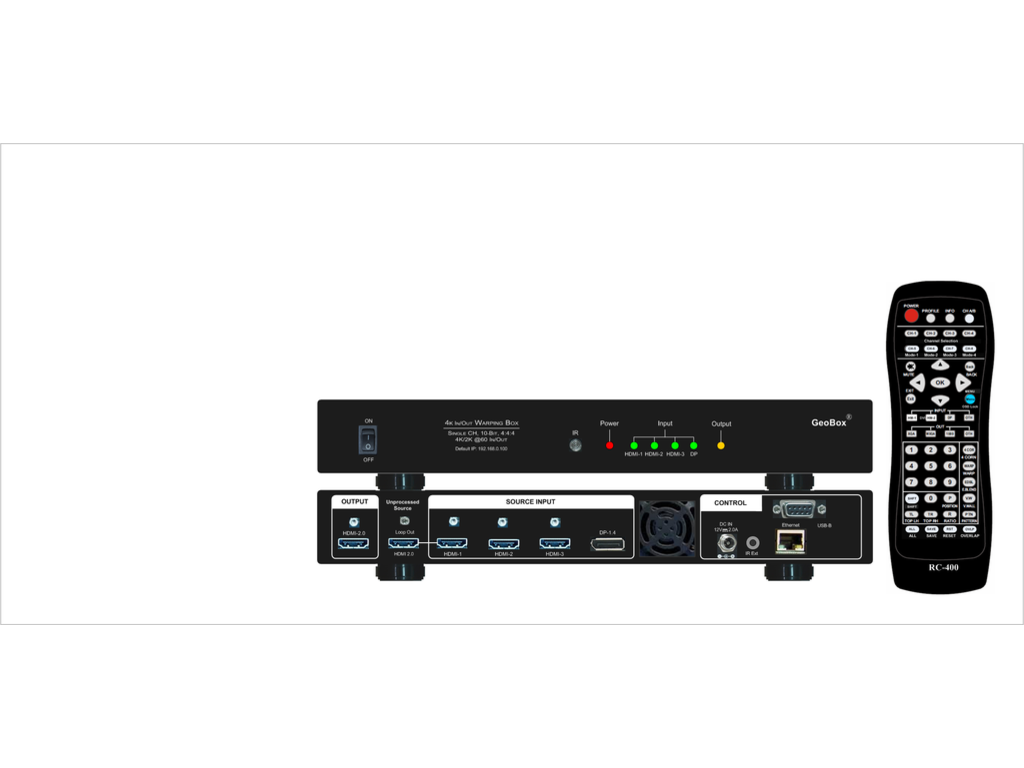

Geobox UD101L UHD Warping box

Name: Geobox UD101L UHD Warping box
Brand: GeoBox
SKU: 101UL1B10
Price: 2450 EUR
Availability: InStock

€2,450.00

Tax excluded

Volume discounts

Quantity	Unit discount	You Save
5	5%	€612.50
10	10%	€2,450.00

Quantity

UD101L UHD Warping Box

Multiple Purpose 4K Warping Processor – Advanced Warp, De-Warp & Multi-View.

The UD101L is a versatile 4K warping processor designed for sophisticated geometry alignment, video wall control, and multi-view applications. From curved screens to complex 90-degree corner wall adjustments, it delivers professional precision.

Advanced Warp Engine

Sophisticated geometry alignment up to 120x68 control points.

Multi-View & Quad Split

Display up to 4 different contents in one 4K display.

8K Input Support

Support for 8K/4K @30Hz and 4K @60Hz via DP 1.4 and HDMI 2.0b.

Seamless Integration

Control via IR, RS232, USB, Ethernet, or WebGui.

Video wall control with image split and cropping
PIP/POP with flexible size and position adjustment
3D format conversion for medical and staging
90-degree corner wall (V and W type) adjustment
90/180/270 rotation and flip for portrait displays
Cascadable for massive large-scale displays

INPUTS

3x HDMI 2.0b, 1x DP 1.4

OUTPUT

1x HDMI 2.0 + Loop Out

LATENCY

Ultra-low (33ms @60Hz)

Warping Precision for Professionals

Advanced Geometric Correction

The UD101L is a multi-purpose 4K processor that serves as a scaler, switcher, and warping engine. It allows users to perform sophisticated alignment on curved screens or even 90-degree corner walls with its unique "V" and "W" type adjustment modes. Multi-units can be cascaded for large-scale video walls, providing a flexible and robust solution for golf simulations, digital signage, and immersive gaming.

Major Applications

• Curved Screen Displays: Perfect for golf simulators and large-screen immersive gaming.
• Portrait Displays: Image rotation for vertical monitors without rotating the signal source.
• Projector Stacking: Stacking multiple projectors to significantly increase image brightness.
• 3D Conversion: Side-by-Side, Top/Bottom, and frame sequential conversion for medical and active 3D displays.
• Mobile Mirroring: Mirror mobile phones or iPads on 4K portrait monitors with cropping and aspect ratio adjustment.

Full Technical Specifications

Technical Property	UD101L Details
INPUT & OUTPUT
Input Connectors	3x HDMI 2.0b, 1x DisplayPort 1.4
Output Connectors	1x HDMI 2.0 (up to 4096*2160 @60Hz, 4:4:4 RGB)
Loop Output	1x HDMI 2.0b for audio and daisy chain
Max Input Resolution	DP: 76804320 @30Hz / HDMI: 76802160 @30Hz, 4096*2160 @60Hz
WARP & GEOMETRY
Warp Engine Control	Up to 120x68 control points
Geometry Adjustment	Max 1200 pixels H&V per corner
Corner Wall Modes	V-shape and W-shape support
Edge Mask	8 control points up to 900 pixels per point
PROCESSING & FEATURES
System Latency	2 frames (33ms @60Hz)
Video Engine	10-bit processor, 3D motion adaptive de-interlace
PIP/POP	320x180 up to 1920x1200 / 2, 3, or 4 split view
HDR Support	HDR 10 Input Processing with SDR 4:4:4 Output
MISCELLANEOUS
Power	DC 12V 2A (Consumption: 13.2W)
Dimensions & Weight	303 x 190 x 40 mm / 1.2 kg
Warranty	2 Year Standard (Extendable up to 5 years)
