SoundTube FP6020-II
€600.00
Tax excluded

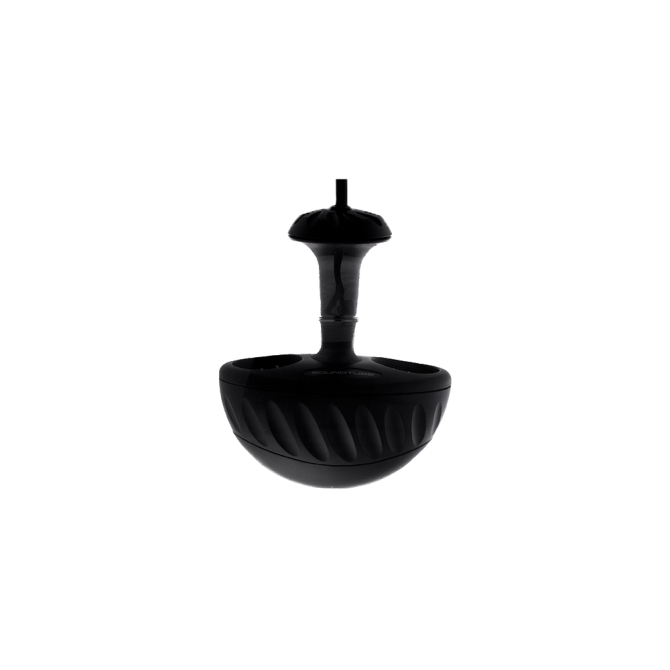

SoundTube FP6020-II
Sound-Focusing Speaker - Targeted audio in a unique package.
The FP6020-II delivers targeted audio by incorporating two full-range, high-performance 1" aluminum dome drivers with patented 20.25" Dual-Parabolic™ sound domes. It provides a sharp focus for high-definition music and messaging while minimizing visual impact.
Targeted Audio FootprintNarrow 30° coverage angle for sharp focus beneath the dome. Stereo SeparationPatented Dual-Parabolic dispersion for true stereo sound. ZeroReflection™ TechnologyProprietary enclosure technology for accurate sound reproduction. Minimal Visual ImpactClear PETG polymer dome blends seamlessly into any environment.
|
 |
Models & Options
FP6020-II Clear Dome
The standard high-directivity dome speaker in clear PETG, ideal for retail and digital signage where audio containment is mandatory but visual impact must be minimized.
Custom Color Options
Optional custom molded colors are available to match specific branding or interior design requirements.
The SoundTube FP6020-II Advantage
- • High-definition audio containment ideal for kiosks, trade shows, and P.O.P. displays.
- • Patented Dual-Parabolic™ technology for definitive stereo separation in a focused footprint.
- • Ultra-narrow 30° coverage angle for pinpoint audio accuracy.
- • Twin full-range concave aluminum drivers in individually sealed compartments.
- • Modular design supports optional motion sensors and LED lighting.
- • Flexible wiring for 8 Ω stereo, 4 Ω mono, or distributed line systems.
- • Includes a 5-year limited warranty (3-year on electronics) for professional peace of mind.
Modular Solutions
Enhance the experience.
SoundTube modular options expand the performance characteristics of the FP series for interactive applications.
FP-MOTION
Instant on and time-delayed off triggers for targeted messaging.
- Adjustable time delay (1-12 seconds)
- Stereo signal path relay for audio delivery
- 12 V output and contact closure for external devices
FP-LIGHT
Warm LED light to draw attention and illuminate displays.
- 3100 K warm white color temperature
- Local or global brightness control
- Max brightness of 75 Lumens with 120° beam
PATENTED DUAL-PARABOLIC™ TECH
Definitive stereo separation in focused audio.
By reflecting sound waves from the mid and upper registers directly beneath the dome, SoundTube's proprietary technology prevents audio bleed while providing a rich, high-fidelity experience that traditional speakers cannot match in open spaces.
Hardware Specifications
Accessories & Mounting
Comprehensive mounting solutions and electronic accessories for versatile deployment.
Included Accessories
Hanging hardware, mounting bushing, and a 15-foot hardwire lead.
Hanging hardware, mounting bushing, and a 15-foot hardwire lead.
Transformers (Optional)
10 or 20 W transformers with junction boxes for 25, 70.7, and 100 V applications.
10 or 20 W transformers with junction boxes for 25, 70.7, and 100 V applications.
Mounting Adapters
Wall brackets (AC-WB4) and rigid mount adapters (AC-FP6-RMA) for diverse structural installs.
Wall brackets (AC-WB4) and rigid mount adapters (AC-FP6-RMA) for diverse structural installs.
Full Technical Specifications
| SPECIFICATION | FP6020-II | |
|---|---|---|
| SYSTEM SPECIFICATIONS | ||
| Transducers | Twin 25.4 mm (1") full-range aluminum concave | |
| Nominal Impedance | 8 Ω stereo | 4 Ω mono | |
| Frequency Response (± 3 dB) | 170 Hz - 22 kHz | |
| Frequency Response (± 10 dB) | 130 Hz - 22 kHz | |
| Sensitivity (1W/1M) | 75 dB | |
| Max Program / Continuous Power | 30 W / 15 W | |
| Coverage Angle (Avg 2-10 kHz) | 45° | |
| PRODUCT FEATURES | ||
| Dome Material | Clear PETG dome | |
| Enclosure Material | High-impact polystyrene | |
| Height / Dome Diameter | 222.3 mm / 514.4 mm | |
| Weight | 2.5 kg (5.5 lbs) | |
| Inputs | Four-conductor 16-gauge hardwire leads | |
